Even though the Compact door does not take up much space, compared to other overhead doors there is some space needed around the door opening to install the door. In this case, we are talking about free space on the side (left and right) on top of the door and the free depth (room behind the door).
Note: all dimensions mentioned on this page are standard dimensions. As we say, the Compact door fits everywhere, there is always a way to make things fit. If you have any doubts or questions, feel free to contact us to find an alternative solution.
How much overhead space is needed?
As the Compact door panels fold up above the door opening, a certain amount of free overhead space is needed above the door opening. The required minimum space depends on the size of the door (the more door panels, the higher the door package).
| Door height (dagmaat) | Minimal Top space required (above door opening) |
| 0 tot 3080 mm high | 420 mm |
| 3081 tot 4300 mm high | 520 mm |
| 4301 tot 5520 mm high | 630 mm |
| 5521 tot 6740 mm high | 770 mm |
| 6741 tot 7960 mm high | 890 mm |
In addition to the minimal top space, additional top space may be required if your door has a a special motor position or additional accessories.
Motor positions:
- Topmotor (additional top space with RC150/175 = 240 mm and with RC250-300 = 260 mm)
- Frontmotor (50 mm additional top space)

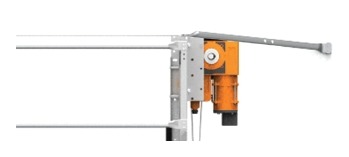

Standard installation with motor on the side. No additional top space required.

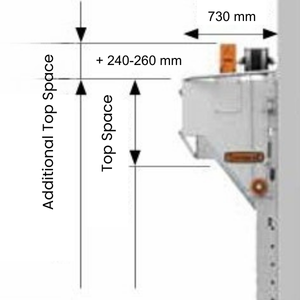

Installation with motor on top. 240-260 mm additional top space required.

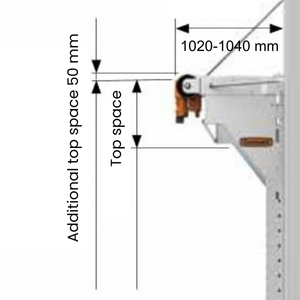

Installation with motor at the front. 50 mm additional top space required.
Other options that require more top space:
- Protective door cover: 130 mm additional top space
- Protective cover side motor: 45 mm additional top space
- Wicket door: 90 mm additional top space
TIP: If you want to know exactly how much space you need around your desired door, you can request a free quote using the configurator. All dimensions are specified in the quote.
How much free side space is needed?

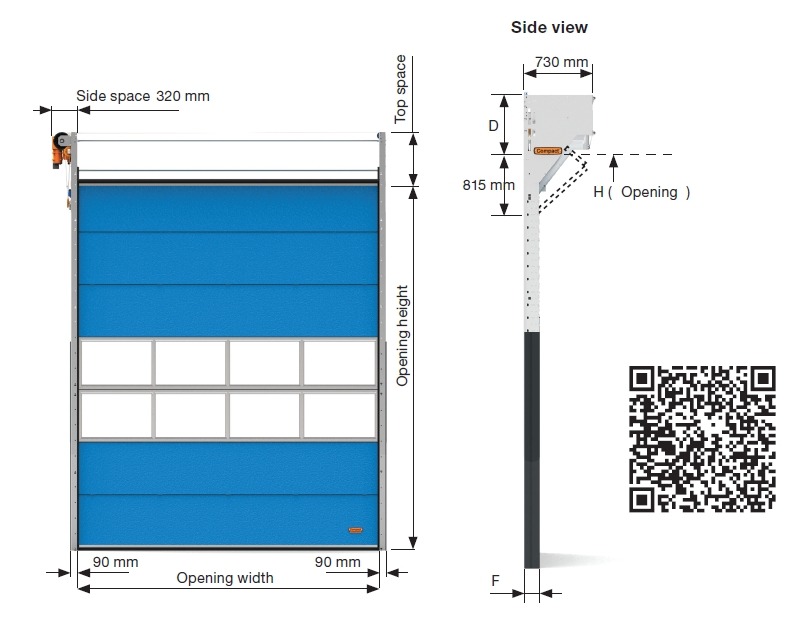

Standard installation for the Compact door is an installation with a motor to the side of the door (see picture below). All Compact doors need a minimum of 90mm on each side for the side tracks. The side on which the motor is installed requires 320 mm side space.
A side motor can be installed on either side of the door. If there is not enough space on the side, the motor can be installed on top of, or in front of the door package.
Side space per motor type (motor on the side of the door):
- RC150/175: 320 mm
- RC250/300: 340 mm
- RC500R: 390 mm
How much depth is needed?
The depth of the door package with a side or top motor is 730 mm. If the motor is installed on the front of the door, the depth is 1020 mm with the lighter RC150/175 motor and 1040 mm for the heavier RC250 motor.
Door tracks

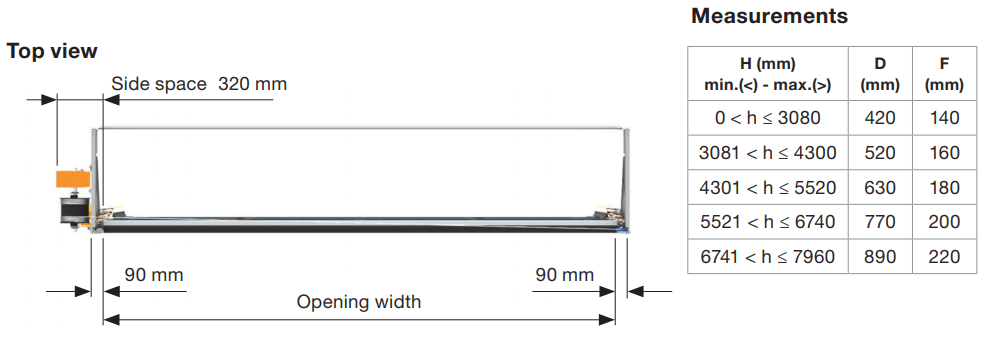

The depth of the door tracks varies, depending on the door size. Find the sizing in the table below.
| Height of the door | Track Depth (F) |
| 0 – 3080 mm | 140 mm |
| 3081 – 4300 mm | 160 mm |
| 4301 – 5520 mm | 180 mm |
| 5521 – 6740 mm | 200 mm |
| 6741 – 7960 mm | 220 mm |
Dimensions of the motors in different positions
The motor of the Compact door can be mounted on the side, front or above the door. By default, a side motor is used which is mounted on the right or left side.
| Type of installation | Side space (engine side) | Additional overhead space |
| Side motor | 320 -390 mm | 0 mm |
| Top motor | 160 mm | 240-260 mm |
| Front motor | 100 mm | 50 mm |
For detailed pictures of motor installations and sizing, please read “How much space does the Compact motor need?”
Protective cover for external installation
If the door is installed on the outside, a protective cover for the door package and the motor is added in some cases. This can only be used with a side or front motor. The protective cover of the door package and the front motor each require 130 mm of additional space for assembly and the maximum width is 5860 mm.
Wicket door
If you want to have a wicket door in your door, there is an additional top space of 90 mm required for installation. Of this, 50 mm are required for the special bottom profile and 40 mm for the door closer.
Download technical drawings
For detailed information about installation dimensions, download the technical drawings.
