How much space does the Compact motor need?

The motor of the Compact door can be mounted on the side, to the front or above the door opening. By default, the motor is installed to the side of the door. This can be either on the right side or the left side.

Motor positionSide space (engine side)Additional overhead space
Side motor320 mm0 mm
Top motor160 mm285 mm
Front motor100 mm50 mm

Additional overhead space is the space needed for the motor on top of the door package. Read all about the required overhead space here.

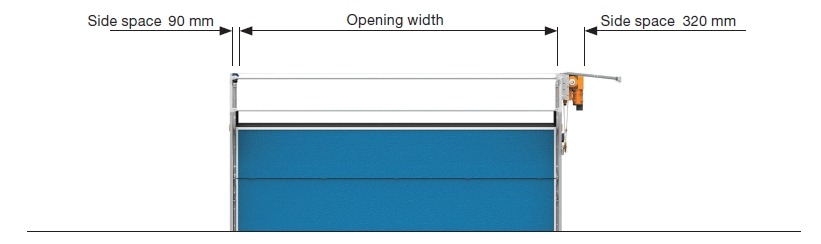

Side door spacing

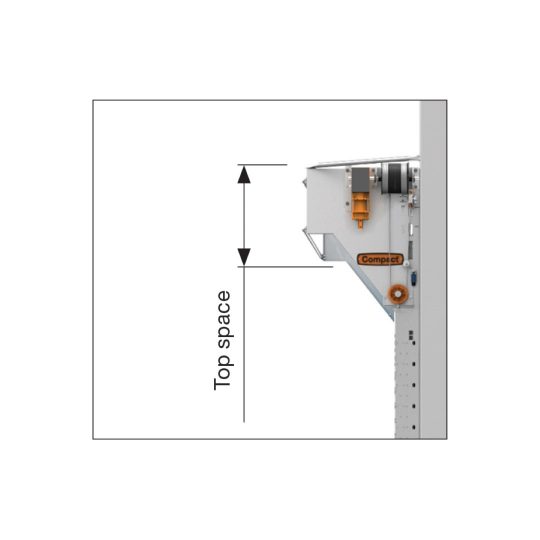

Side motor sizing
Side motor sizing
Zijmotor
Zijmotorset

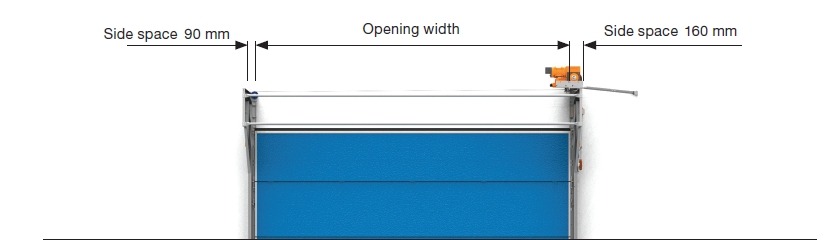

Top motor spacing

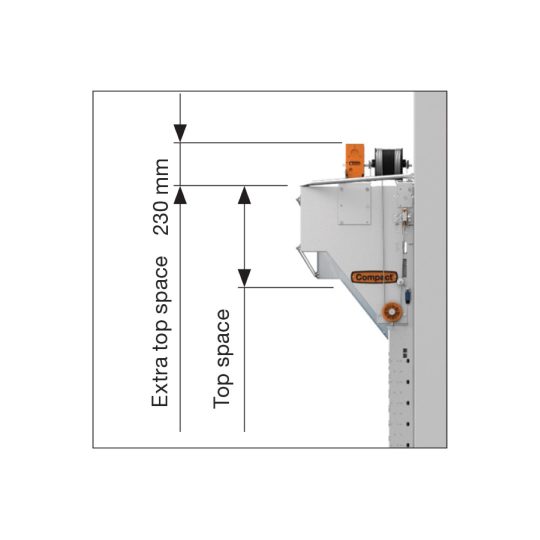

Top motor sizing
Top motor sizing
Compact topmotor
topmotorset

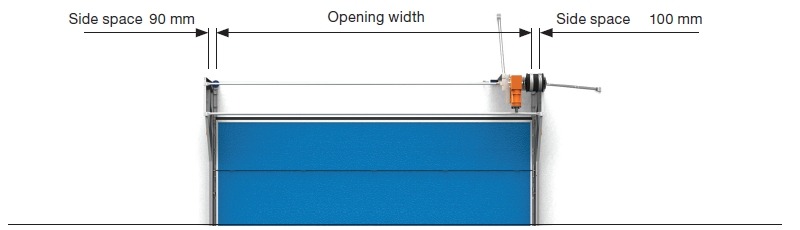

Front motor spacing

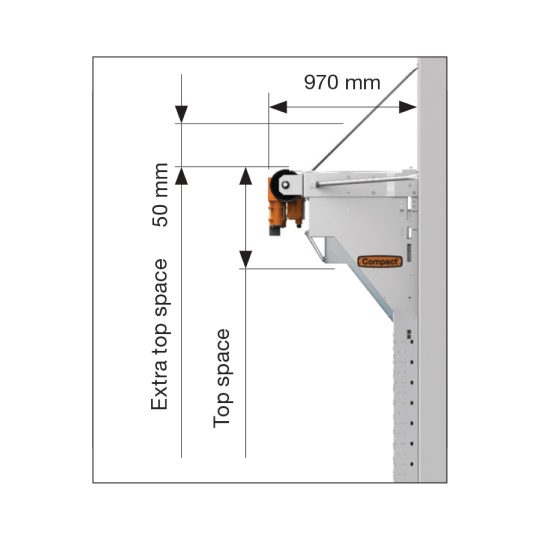

Front motor sizing
Front motor sizing
Compact frontmotor
frontmotorset
