The ultimate space saver
The Compact folding door is a space-saving folding door that can also be installed on the outside of a room. This option is often used in rooms where there is no space for the rails and door panels on the inside, or where conditions are less favourable, such as in car wash facilities, spray and paint booths, drying rooms or machine rooms.
It is also possible to install the Compact door on the outside of a building, literally in the open air. Examples include renovation projects and the replacement of existing sliding doors or roller shutter doors. A traditional overhead door cannot be installed on the outside of a building due to its bulky rail system. The “side-bearing” folding construction of the Compact doors is the perfect solution in these cases.
External Installation Example
In the following video, you can see an example of the Compact door being installed externally.
Protection of the door and components
When installed on the outside of a building, the Compact folding door may be exposed to weather conditions such as rain and snow. In such cases, it is advisable to take a number of protective measures to extend the service life and ensure optimal functioning of the folding door.
Cover for door panels (excl. motor)
The Compact door package is protected by a cover. This cover is delivered in components and can easily be installed over the door panels. Available in RAL colour of choice.
Additional top space needed: 60 mm
Max width: 5860 mm
Cover for front motor and panels
The door panels and the front motor are protected by this cover. Delivered in components and easy to install. Motor side is universal (left or right).
Cover not available for top motor
Additional top space needed: 60mm.
Max width: 5860 mm
Available in any RAL colour
Cover for side motor (excl. panels)
The side motor can be fitted with a protective cover. This is supplied in components and can easily be installed to protect the motor (not the panels). Available in any RAL colour
Covers are only available with a side or front motor, not with top motor.
Top engine position
A protective cover is not possible with this motor position. For outdoor installations, we recommend using a side motor or front motor position where possible.
Extra protection when installed outdoors or in a humid environment.
If the Compact door is directly exposed to the elements, we recommend taking a number of additional protective measures in addition to the protective covers to better protect the door.
- Powder coating of the rails, folding plates and fittings
- Fastening materials with a stainless steel coating.
- Motor with extra high protection class IP65 (dust-free and water-resistant)

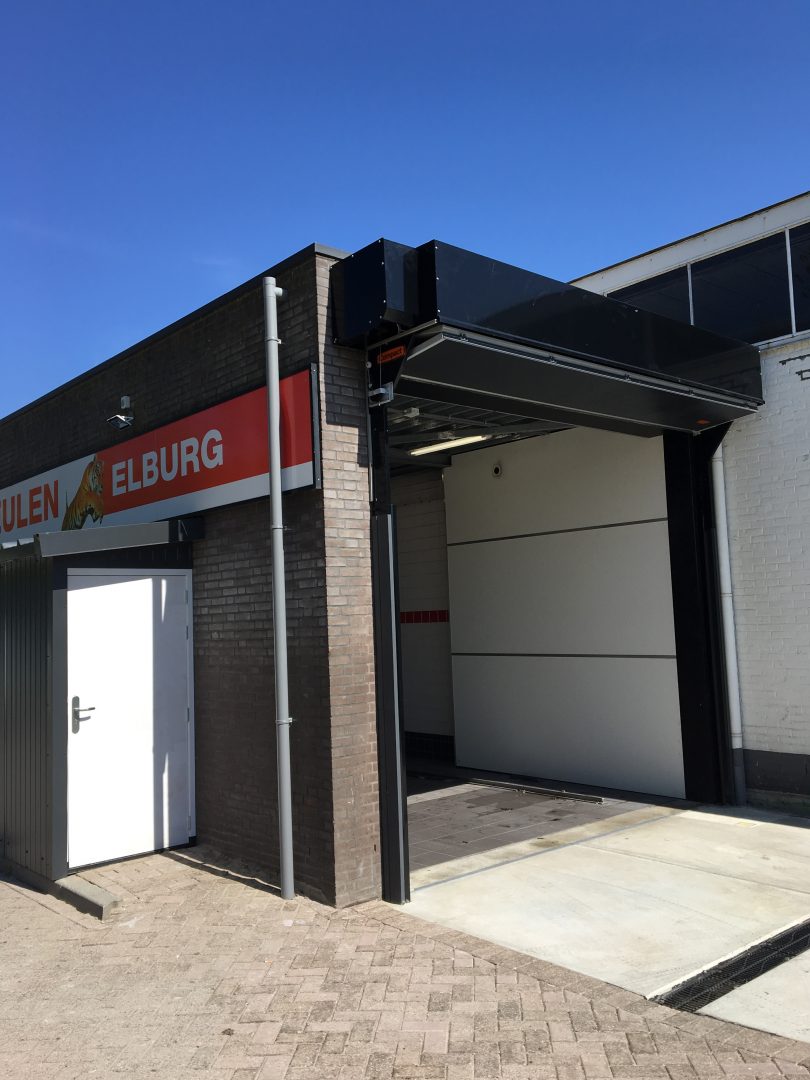

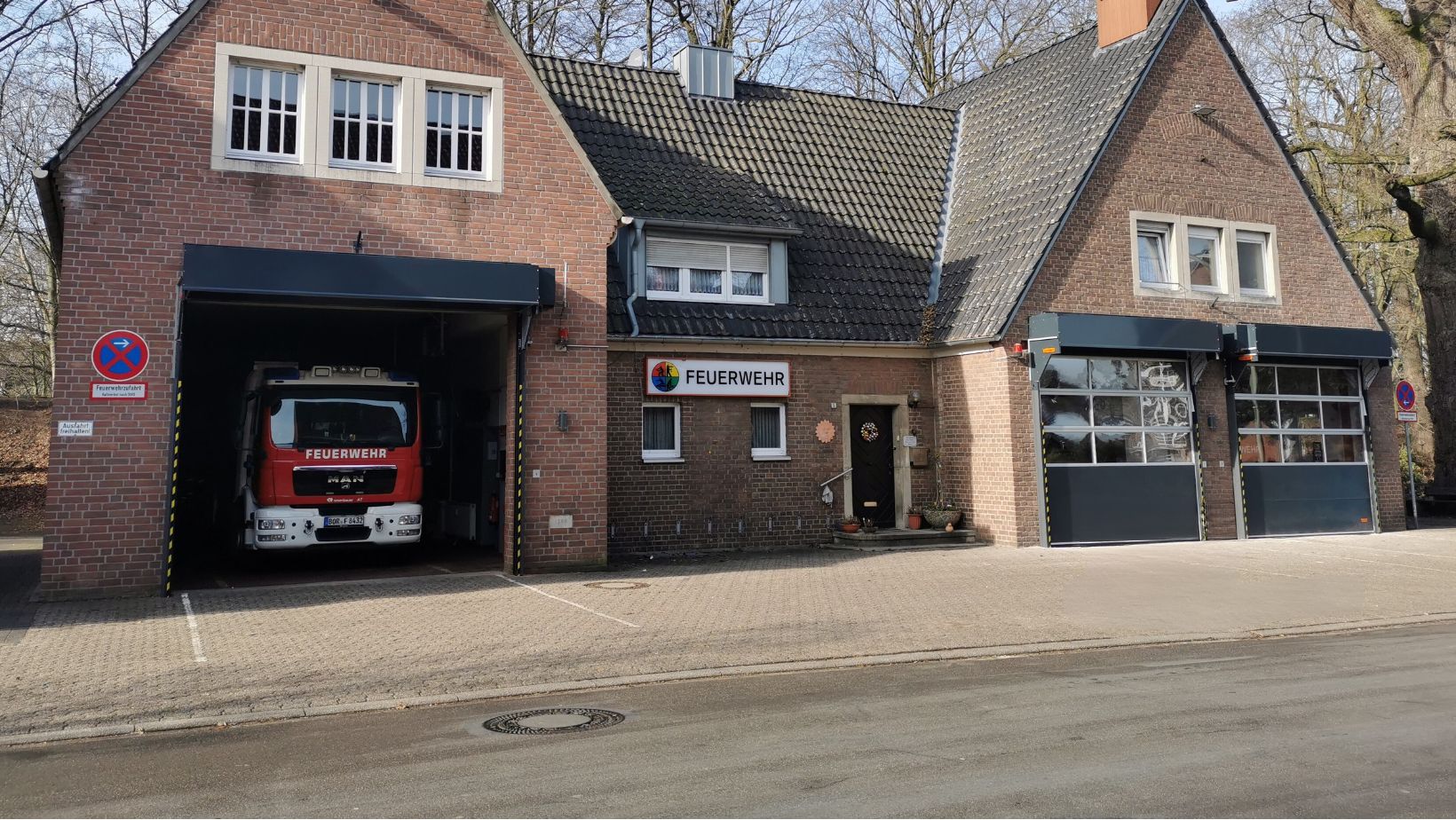

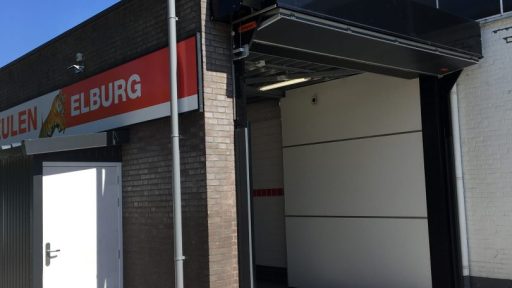

External installation examples
Interested in the Compact door?
All Compact folding doors are custom-made in our factory in the Netherlands. You can design your door online and receive a price estimate by email. Our specialists are available to advise you if you have any specific questions.
